| Item name | Size | Qty | Price |
|---|---|---|---|
| Wall Block | 40 x 12 x 8" H | Each | Call for quote |
| Corner/End | 40 x 12 x 8" H | Each | Call for quote |
| Contemporary Wall Cap | 24 x 12 x 2-3/8" H | Each | Call for quote |
| Base Block | 15 x 12 x 4" H | Each | Call for quote |
Ordering and Installation
- Smooth surfaces, 90° corners, chamfered face
- Builds linear gravity walls with 0.75" setback (5.3°), adjustable to verticalList Item
- Chroma Color facemix technology on face
- Corner/End units have Chroma Color on face and sides
- Lifting device required
- Cap with Contemporary Wall Cap
- For quick and easy Palisade Wall installation, use base block (gray)
- Available by pallet
- Dimensions shown are nominal

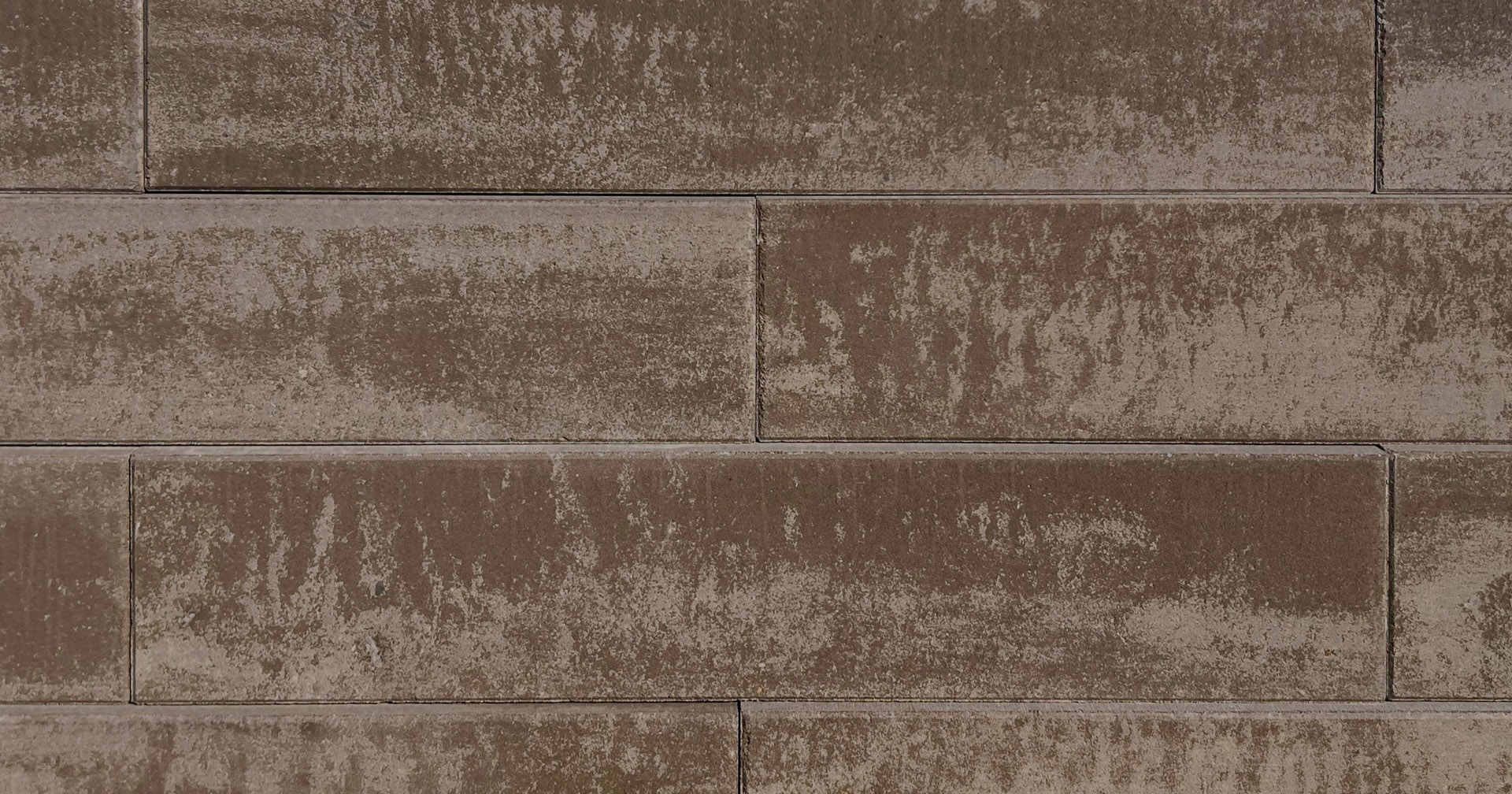

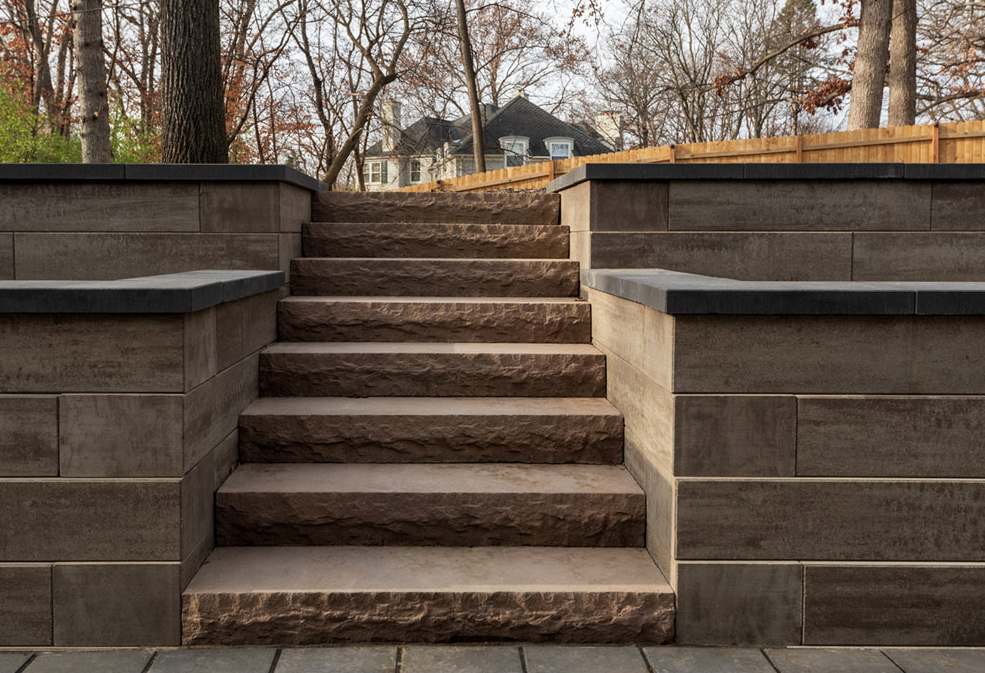

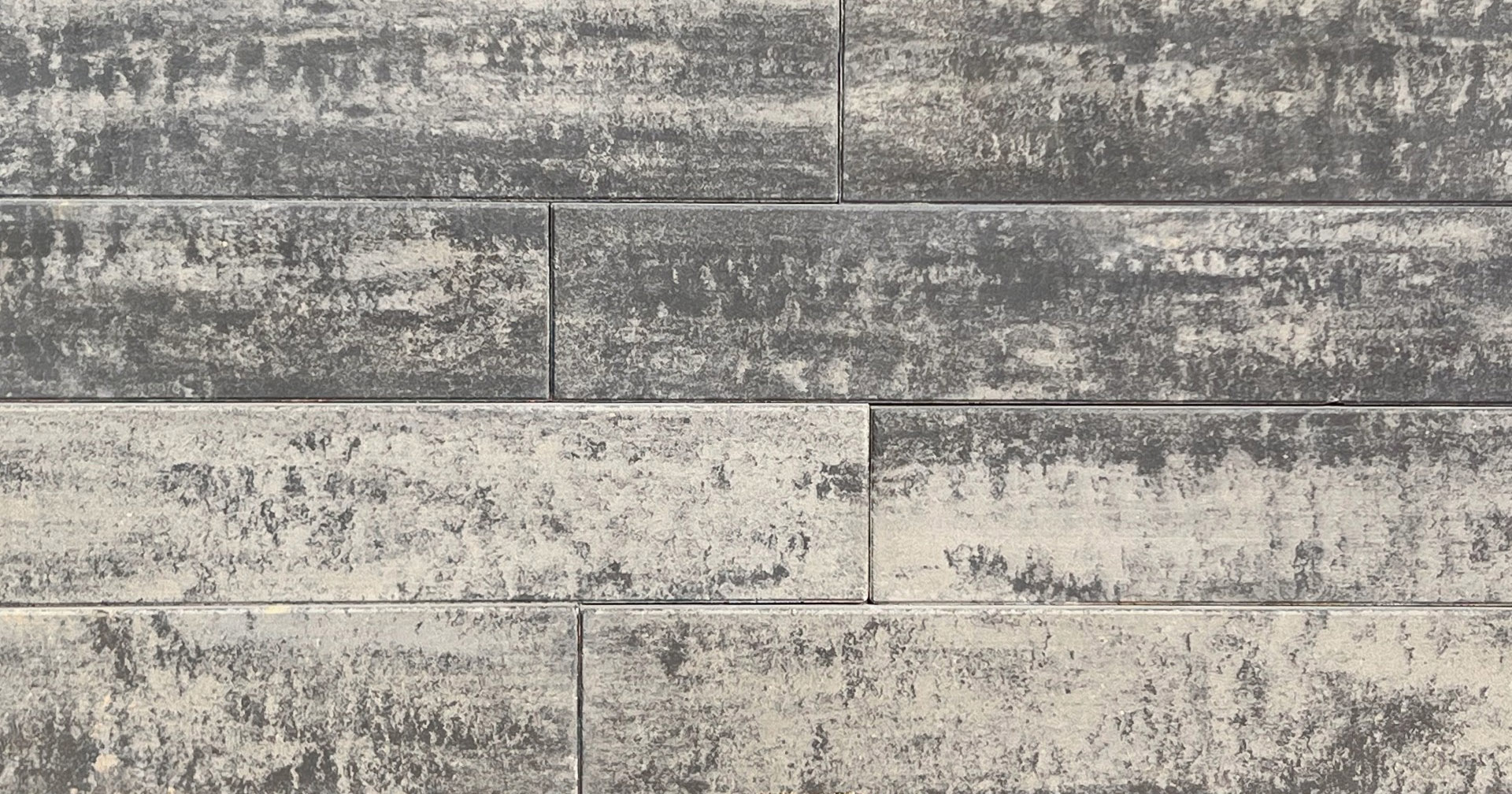

Palisade Wall is the first single-block, facemix retaining wall in the U.S.. An enhancement to both traditional and contemporary landscapes, each block measures 40″ long, 8″ high, and 12″ deep, weighing in at 330 lbs. Available in two refined colors, Café and Cascade, this system features two unit types delivered on separate pallets: Standard Units with facemix on the front and Corner/End Units with facemix on the front and one end.
Palisade Wall Sizes
| Unit | Dimensions | Face Area | Weight | Units/Layer | Layers | Units/Pallet | Pallet Weight |
|---|---|---|---|---|---|---|---|
| Wall Block | 40 x 12 x 8" H | 2.22 sq. ft. | 330 lbs. | 4 | 2 | 8 (17.76 sq. ft.) | 2,714 lbs. |
| Corner/End | 40 x 12 x 8" H | 2.22 sq. ft. | 330 lbs. | 4 | 2 | 8 (17.76 sq. ft.) | 2,714 lbs. |
| Contemporary Wall Cap | 24 x 12 x 2-3/8" H | 2.0 ln. ft. | 50 lbs. | 6 | 8 | 48 (96 ln. ft.) | 2,450 lbs. |
| Base Block | 15 x 12 x 4" H | 0.44 sq. ft | 47 lbs. | - | - | 56 (24.64 sq. ft.) | 2,828 lbs. |
